ERS 6 Blue Edition Accessories

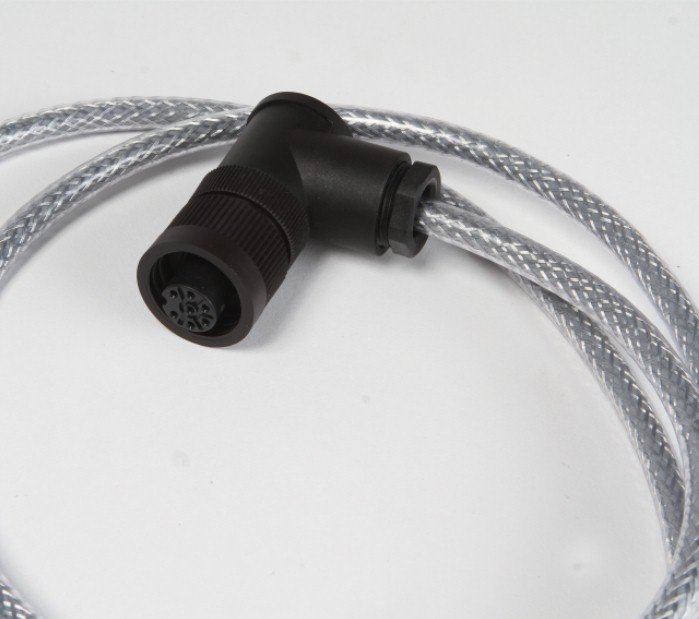

ERS 6 Blue Edition Power Connector


ERS 6 can be supplied with or without a pre wired power connector.

Supplied pre wired; the 5 pin connector is factory pre-wired using 5 core 4.0mm silver braided SY cable cut to length at 3.5 Meters.



Part Numbers:
PF-ERS6-BLU: ERS 6 Silver Edition
PF-ERS6-BLU-SY: ERS 6 Silver Edition supplied
with pre wired SY






ERS 6 Blue Edition Auxiliary Connector


ERS 6 Blue Edition can control other devices via its internal programable relay.
An externally connected timer can be used to override ERS operation when required.
An externally mounted contactor can be controlled for additional load control or to utilise the export limiting function
in combination with the ERS-EL6 export limitation module.
ERS controls these external devices via the AUX connector on the side of the unit.
An additional plug is required for this connection which is not supplied as standard.




Part Number:

PF-ERS-4/6-AUXCON
